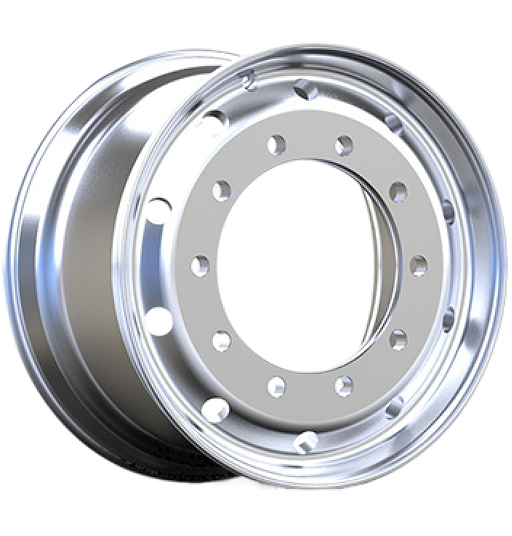

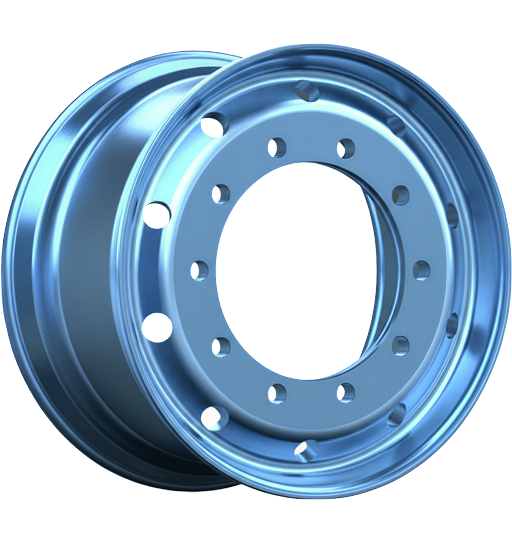

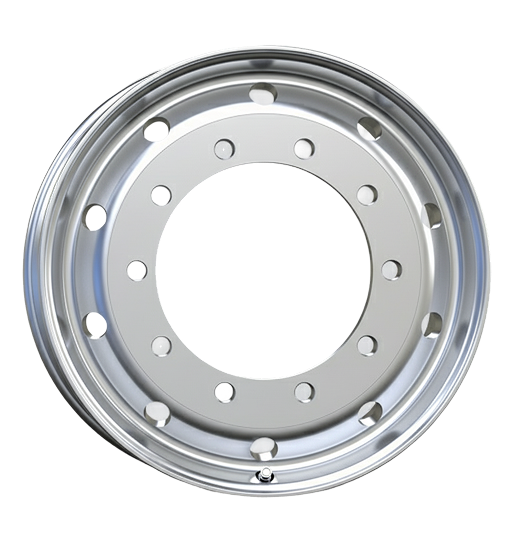

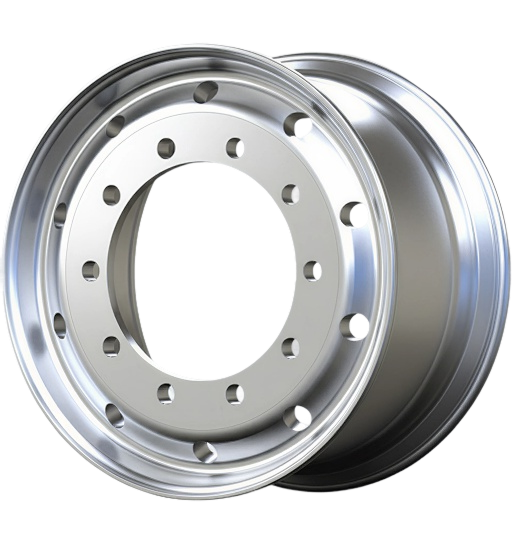

FG-011

‍

Size	Product No.	Inset (mm)	Outset (mm)	Disc Thickness (mm)	Bolt Holes	P.C.D (mm)	Bolt Hole Dia (mm)	C.B.D (mm)	Max Load (Kg)	Weight (Kg)	Valve	Tire
22.5×11.75	S1020020	0	25	25	335	335	Ø26	Ø281.2	4750	24.8	TR553E	385/65 R22.5
22.5×13.00	S1020020	-14	14	28	335	335	Ø26	Ø281.2	5700	30.3	TR553E	445/65 R22.5
22.5×12.25	S1020050	0	28	28	285.75	285.75	Ø26	Ø220.1	5600	29.6	TR553E	425/65 R22.5
22.5×13.00	S1020050	0	28	28	335	335	Ø26	Ø281.2	5700	28.8	TR553E	445/65 R22.5
22.5×14.00	S1020050	0	27	27	335	335	Ø26	Ø281.2	5800	30.8	TR553E	455/55 R22.5
22.5×14.00	S1020051	24.5	52.5	28	335	335	Ø32	Ø281.2	5800	31.1	TR553E	455/55 R22.5
