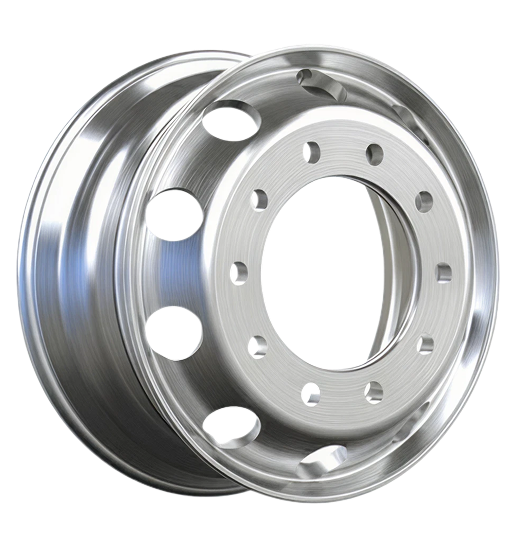

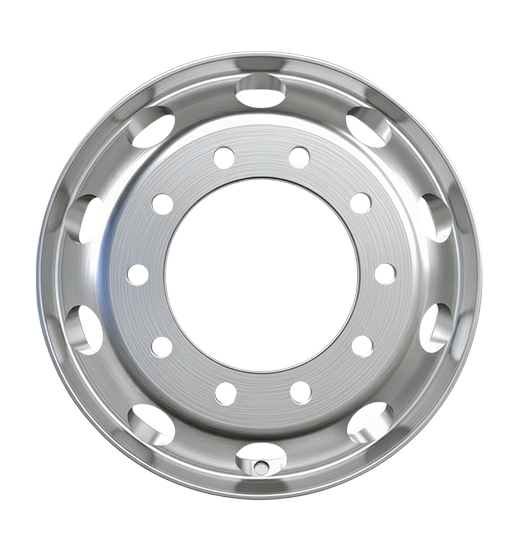

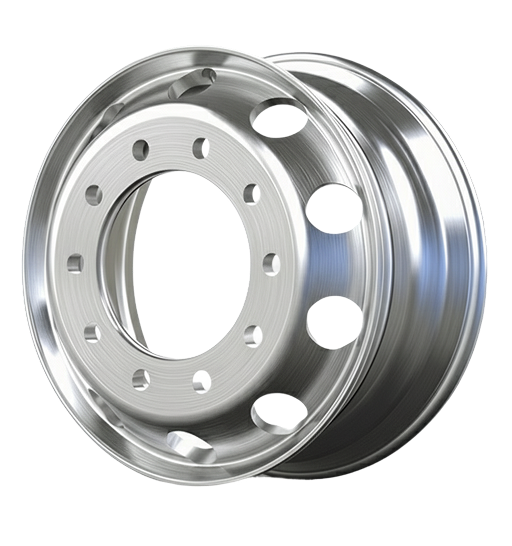

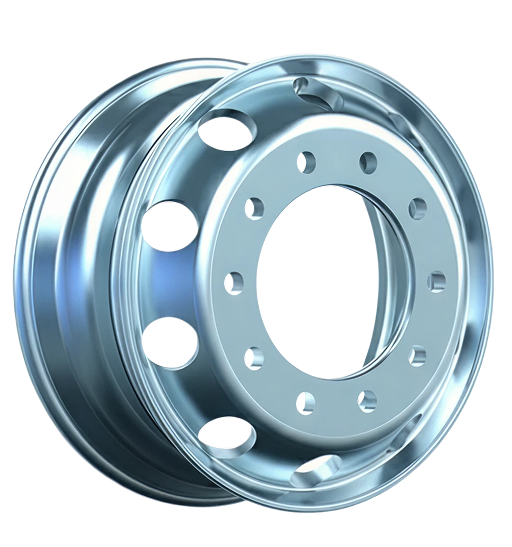

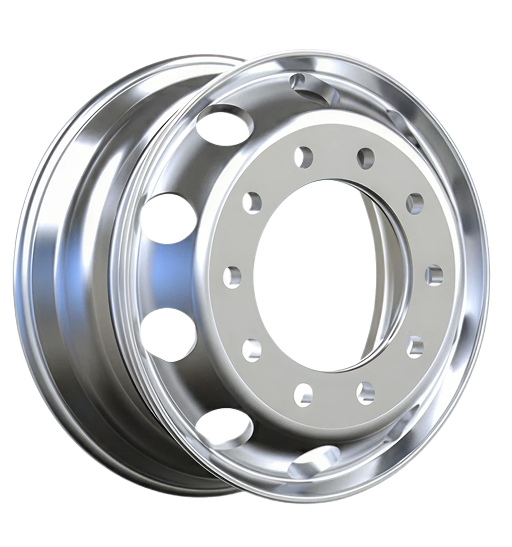

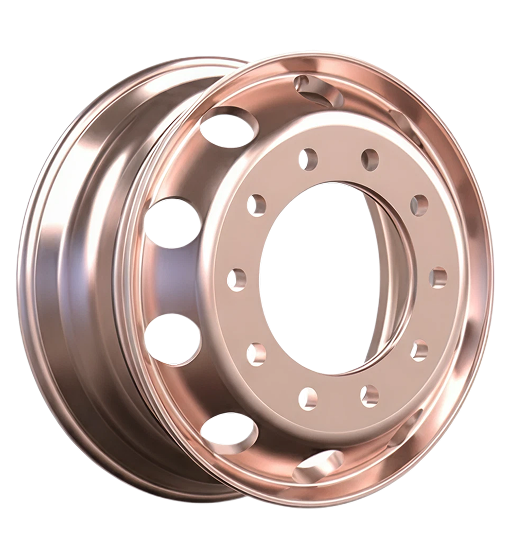

FG-009

Wheel Specification — FG-009

Size	Product No.	Inset (mm)	Outset (mm)	Disc Thickness (mm)	Bolt Holes	P.C.D (mm)	Bolt Hole Dia (mm)	C.B.D (mm)	Max Load (Kg)	Weight (Kg)	Valve	Tire
22.5×6.75	S1020010 / S1020011 / S1020012	128	150	22	275	275	Ø26	Ø221	2800	21.2	TR554D	9R22.5
22.5×7.50		137	160	23	275	275	Ø32	Ø214	3550	26.5	70MS-7	245/75 R22.5
22.5×7.50		137	160	23	335	335	Ø32	Ø281.2	3550	24.4	70MS-7	245/75 R22.5
22.5×8.25		145	168	23	335	335	Ø26	Ø281.2	3650	24.3	70MS-7	11R22.5
22.5×8.25		145	168	23	335	335	Ø26	Ø281.2	3650	23.2	TR554D	11R22.5
22.5×8.25		146	168	22	285.75	285.75	Ø26	Ø220.1	3356	21.2	TR554D	11R22.5
22.5×8.25		145	168	23	285.75	285.75	Ø26	Ø220.1	3650	23.5	TR554D	11R22.5
22.5×8.25		104	127	23	335	335	Ø26	Ø281.2	3650	22.5	TR554D	11R22.5
22.5×9.00		152.5	176	23.5	335	335	Ø26	Ø281.2	4125	24.8	TR554D	12R22.5
22.5×9.00		152	176	24	335	335	Ø26	Ø281.2	4536	25.4	TR554D	12R22.5
22.5×9.00		152.7	176	23.3	335	335	Ø26	Ø281.2	4125	25.0	70MS-7	12R22.5
22.5×9.00		152	176	24	335	335	Ø26	Ø281.2	4536	25.9	70MS-7	12R22.5
22.5×9.00		114	138	24	335	335	Ø26	Ø281.2	4000	24.1	TR554D	12R22.5
